Iscar CSDPN 2525M-12 3600069

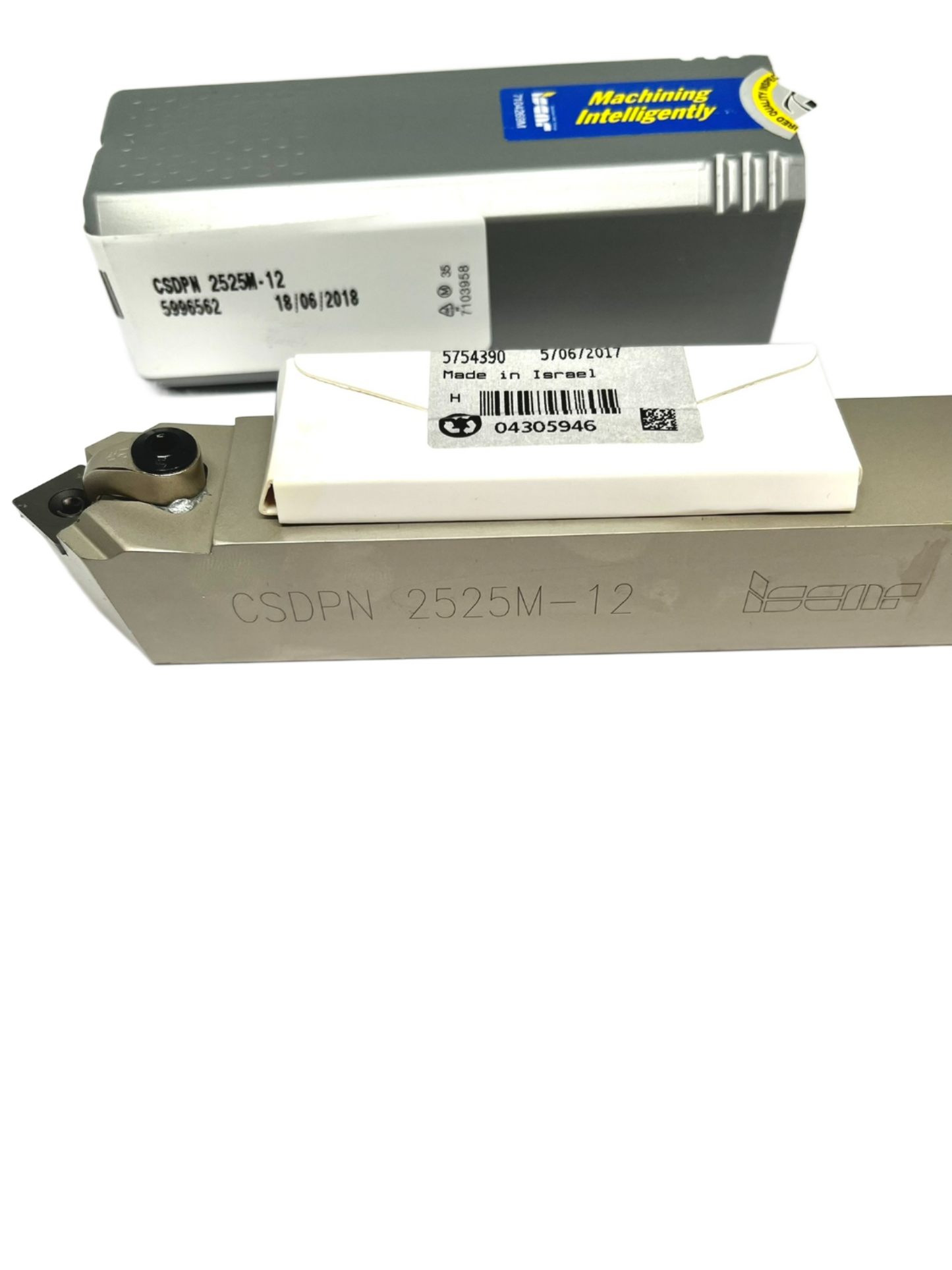

Iscar CSDPN 2525M-12 Turning Toolholder – CNC External Profiling (Right-Hand)

The Iscar CSDPN 2525M-12 is a precision external profiling and threading toolholder for CNC lathes. Designed for SPMR and SPGN carbide inserts, this right-hand toolholder offers excellent stability, secure insert clamping, and smooth cutting performance. With a 25 × 25 mm shank and 150 mm functional length, it ensures precise results for profiling, grooving, and external threading on steels, stainless steels, and cast iron.

Key Features

• Toolholder type: CSDPN – designed for SPMR / SPGN inserts
• Hand of tool: Right-hand (R) version
• Shank size: 25 × 25 mm for high rigidity
• Functional length: 150 mm – optimized for precision profiling
• Head length: 30 mm
• Axial rake angle: 0°
• Radial rake angle: 6°

Applications

• External profiling and threading on CNC lathes
• Compatible with ISO-standard SPMR and SPGN carbide inserts
• Machining steels, stainless steels, and cast iron
• Used in general machining and precision applications

Note: Price is for 1 individual toolholder.

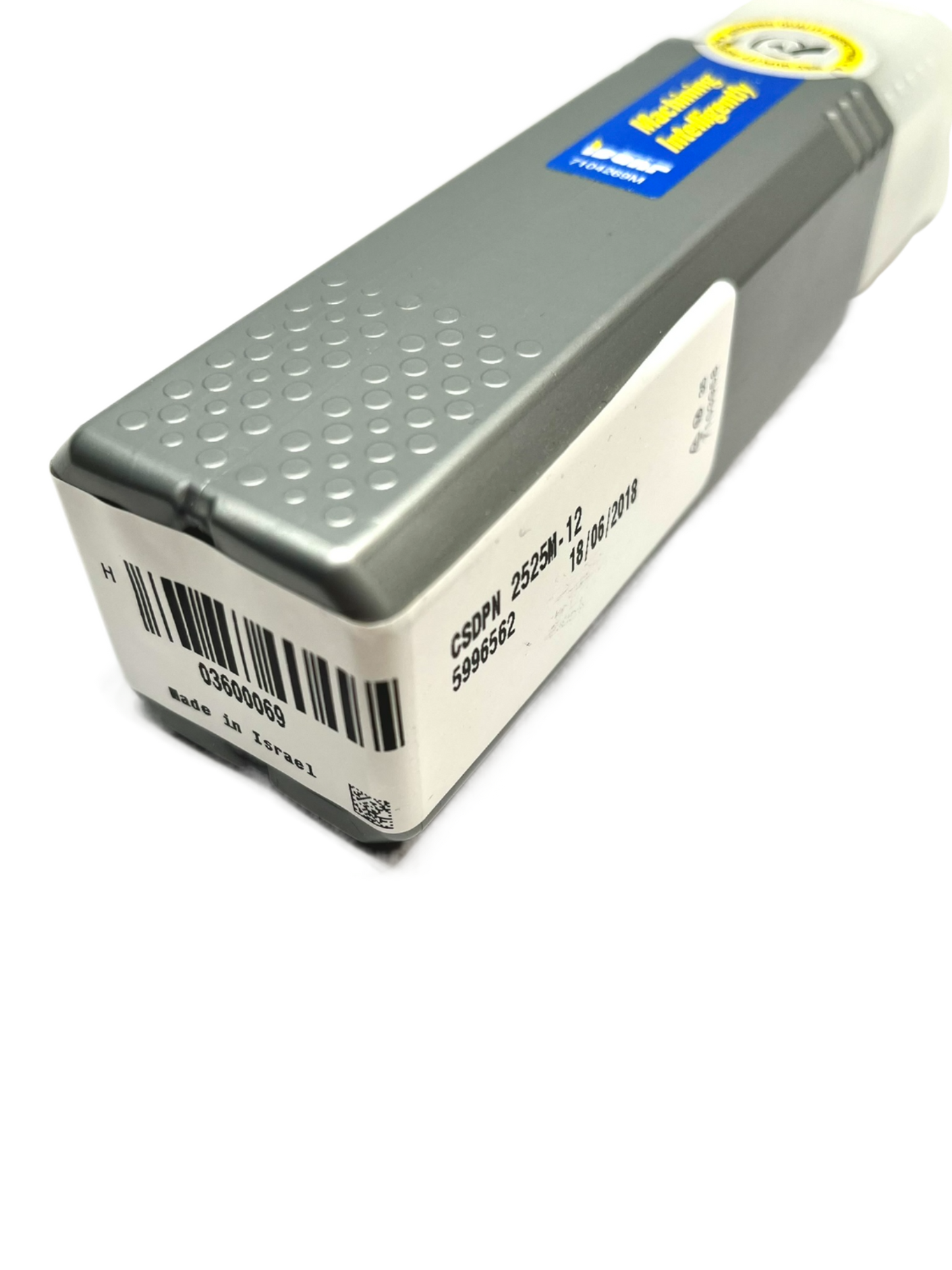

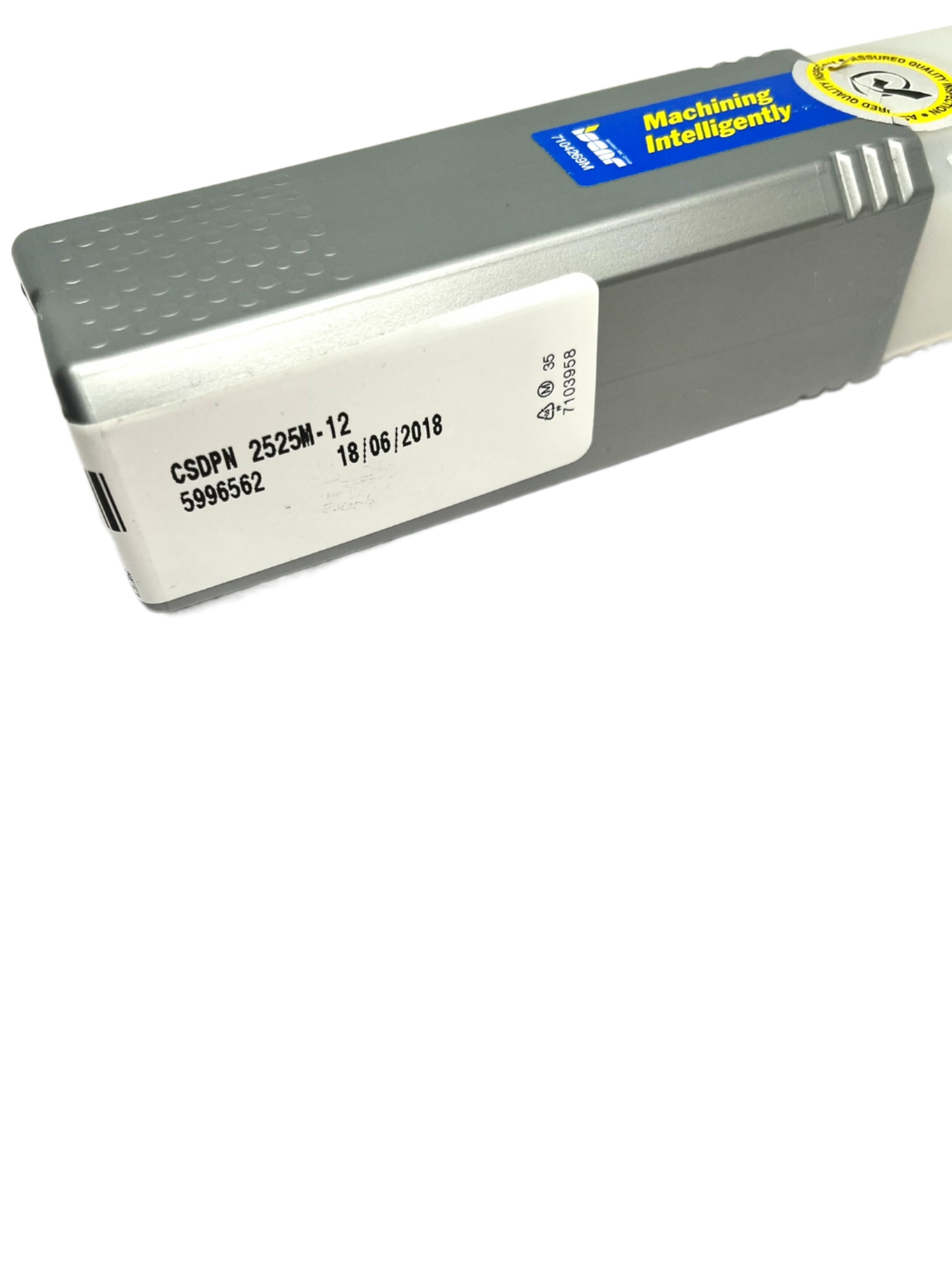

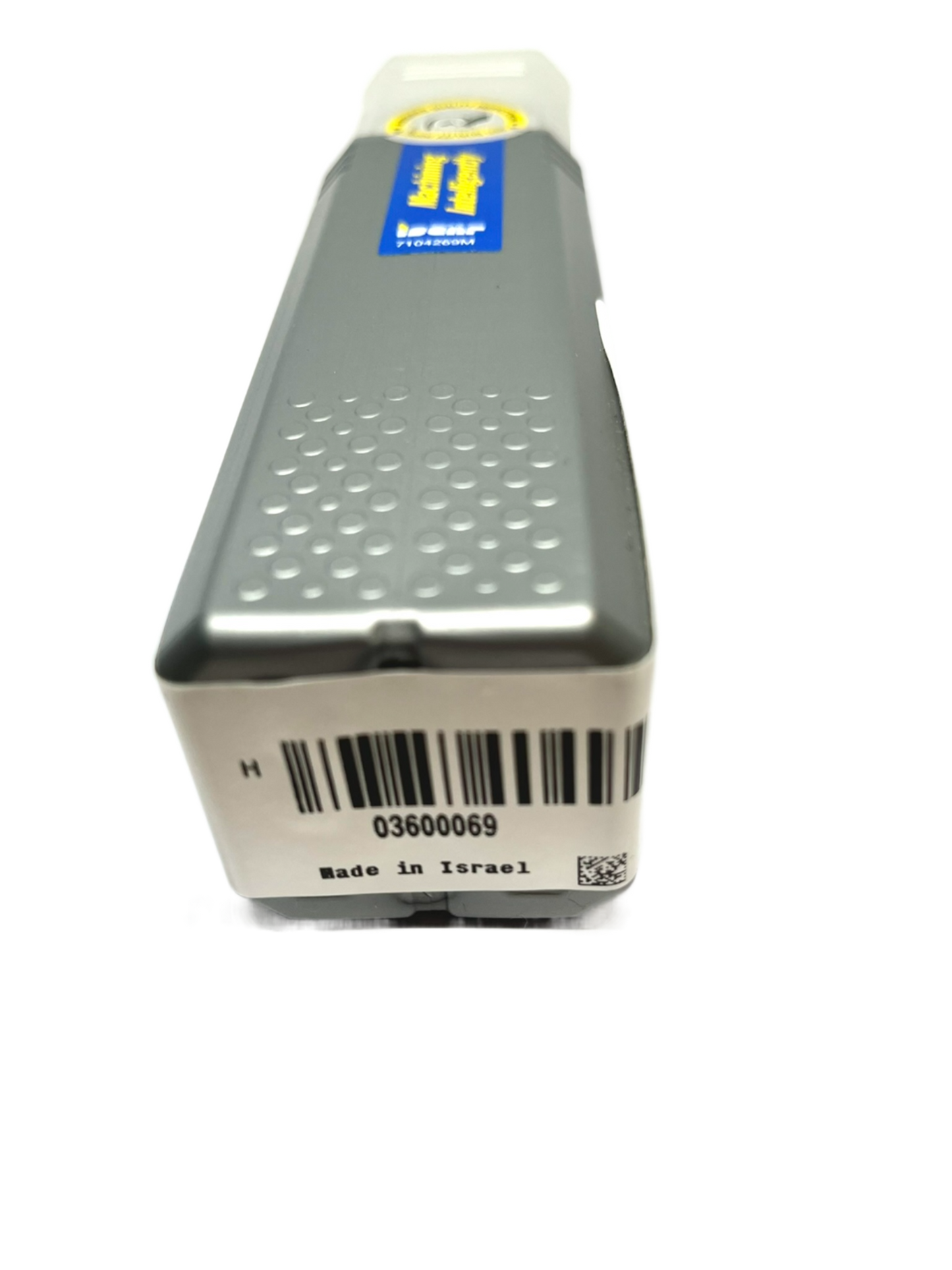

*Box appearance may vary depending on older or newer stock batches.*
