Iscar S08K SCLCR-06 3600851

Iscar S08K SCLCR-06 Boring Bar – CNC Turning Toolholder

The Iscar S08K SCLCR-06 is a precision boring bar for CNC turning applications. It is designed to hold CCMT/CCGT carbide inserts, delivering stable performance, reliable chip evacuation, and accurate machining results. With a shank diameter of 8 mm and a 125 mm functional length, this toolholder is especially suitable for fine small-bore internal turning operations.

Key Features

• Toolholder type: SCLCR – compatible with CCMT/CCGT/CCGW inserts
• Shank diameter: 8 mm for compact boring applications
• Functional length: 125 mm – optimized for small internal bores
• Minimum bore diameter: 10.5 mm
• Axial rake angle: 0° for balanced cutting
• Radial rake angle: -11° for efficient chip control

Applications

• Small-bore internal turning and boring on CNC lathes
• Compatible with ISO-standard CCMT/CCGT/CCGW carbide inserts
• Suitable for machining steels, stainless steels, and cast iron
• Ideal for precision engineering, watchmaking, and fine machining industries

Note: Price is for 1 individual toolholder.

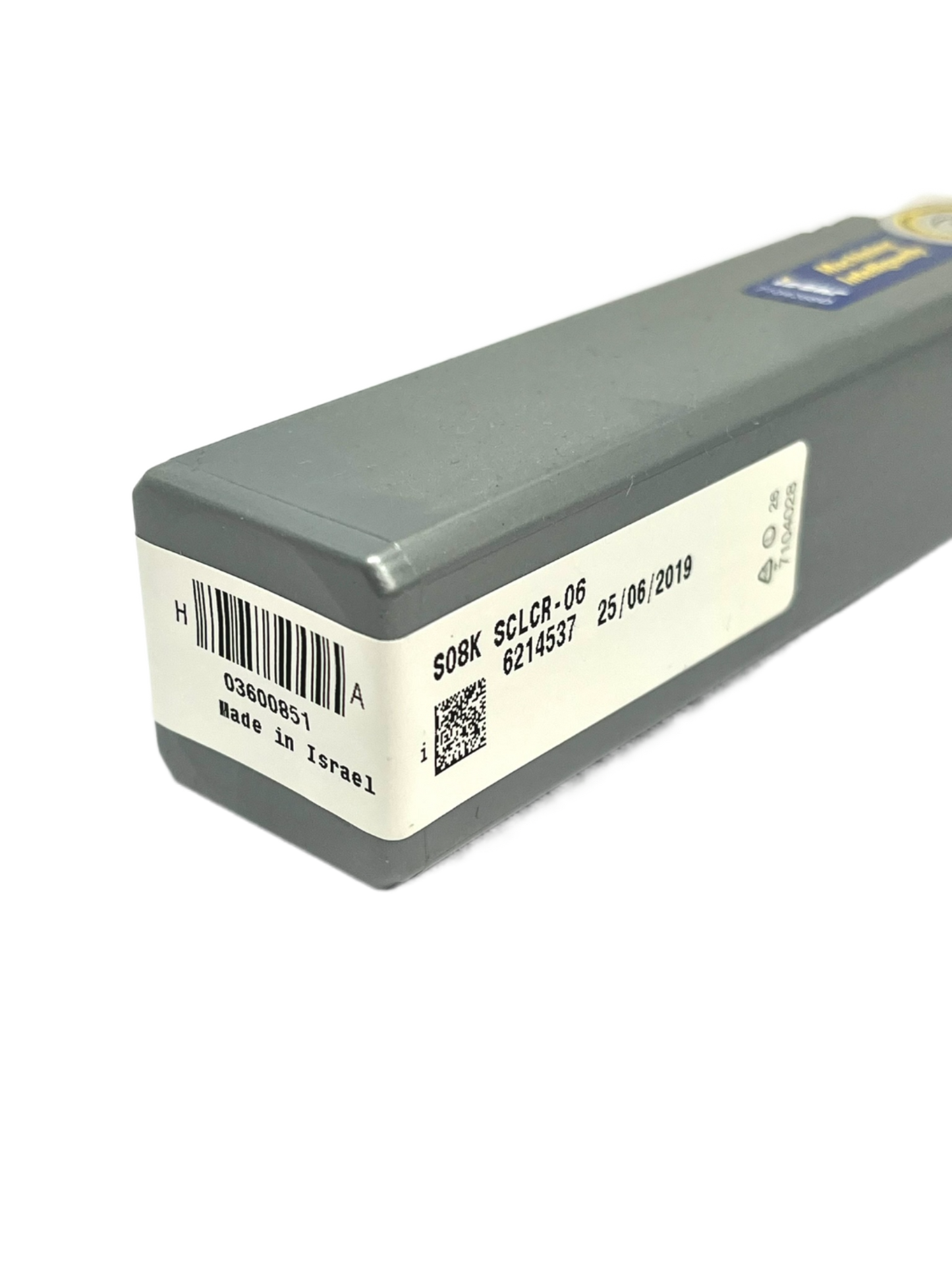

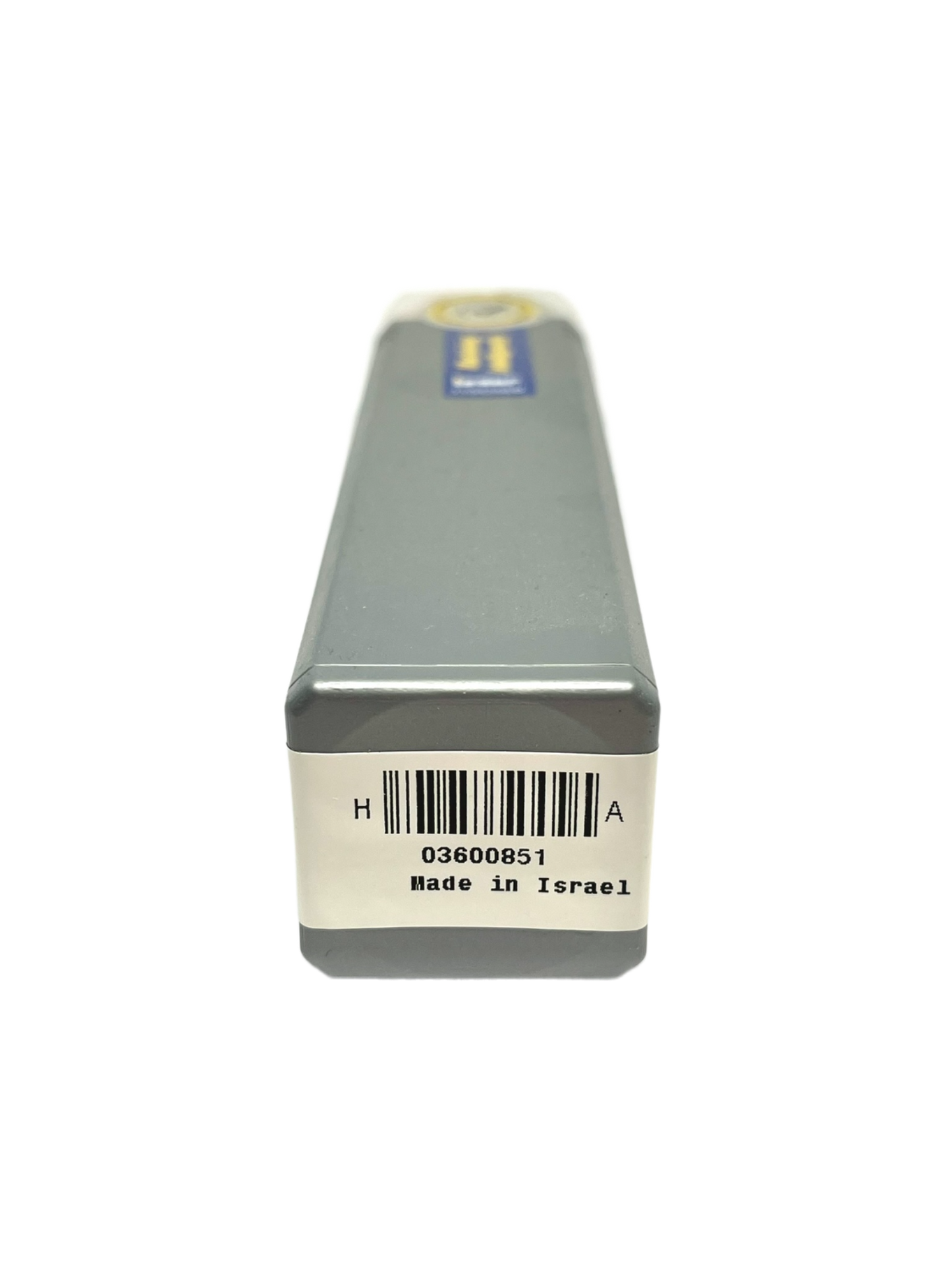

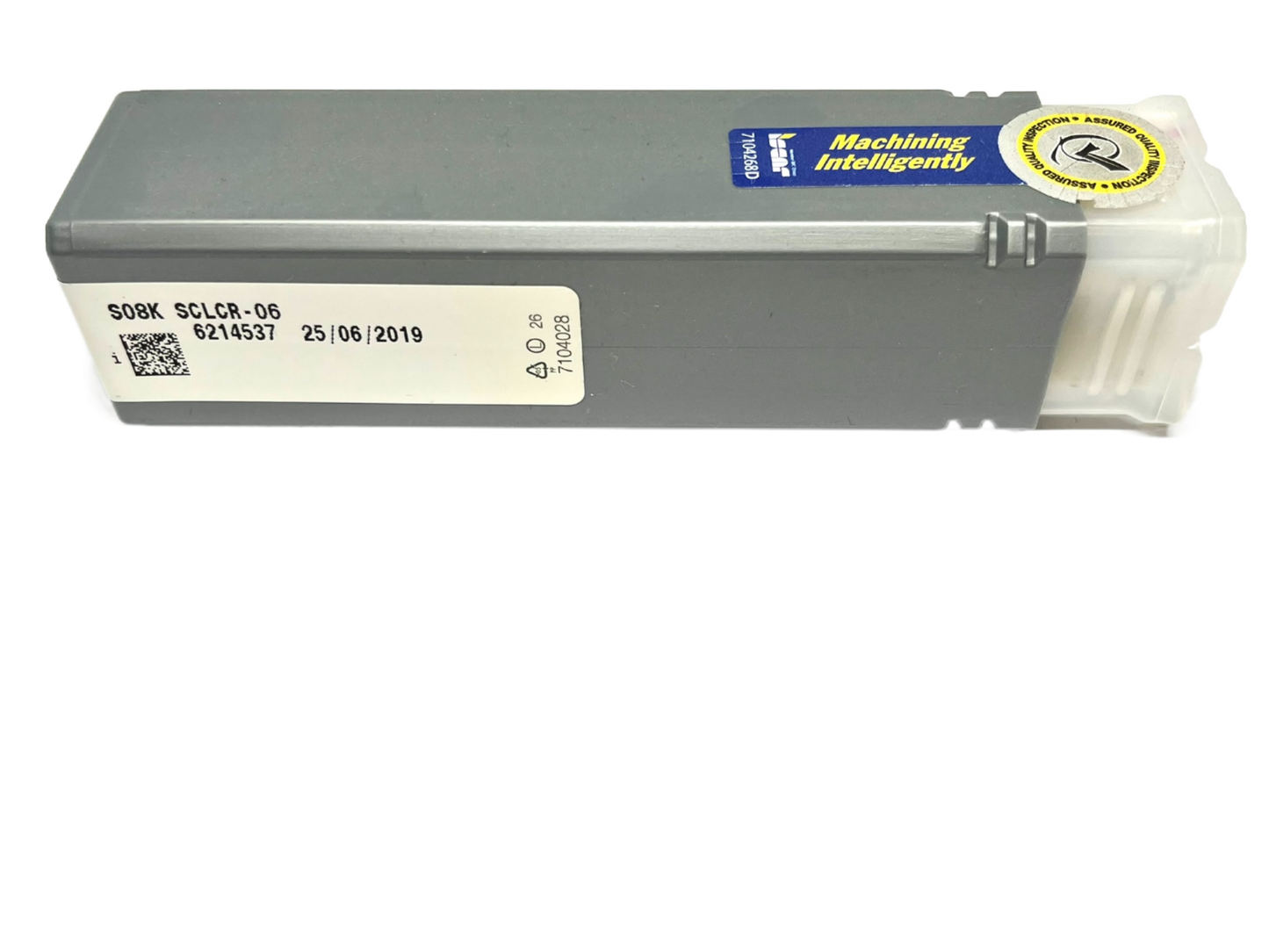

*Box appearance may vary depending on older or newer stock batches.*
