Iscar S25S SCLCR-09 3600855

Iscar S25S SCLCR-09 Boring Bar – CNC Turning Toolholder

The Iscar S25S SCLCR-09 is a high-performance boring bar for CNC turning operations. Designed for secure clamping of CCMT/CCGT inserts, this toolholder ensures reliable machining, excellent surface finish, and long tool life. With a 25 mm shank diameter and a 250 mm functional length, it is ideal for medium to deep boring applications in a wide range of materials.

Key Features

• Toolholder type: SCLCR – suitable for CCMT/CCGT/CCGW inserts
• Shank diameter: 25 mm for rigid and stable clamping
• Functional length: 250 mm – supports deeper boring operations
• Minimum bore diameter: 35 mm
• Axial rake angle: 0° for balanced cutting
• Radial rake angle: -4° for stable chip evacuation

Applications

• Internal turning and boring on CNC lathes
• Compatible with ISO-standard CCMT/CCGT/CCGW carbide inserts
• Machining of steels, stainless steels, and cast iron
• Ideal for general machining, automotive, and precision engineering

Note: Price is for 1 individual toolholder.

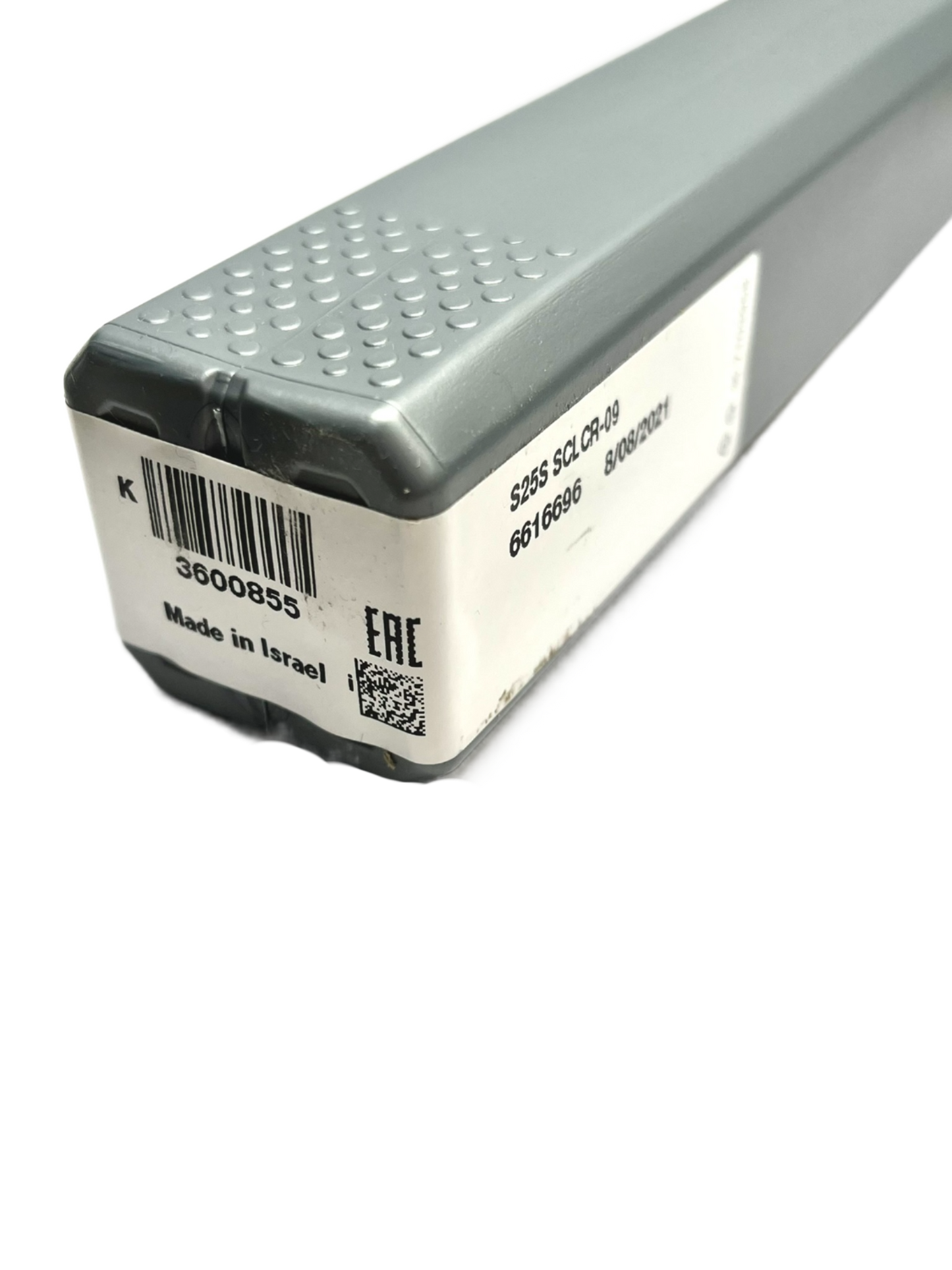

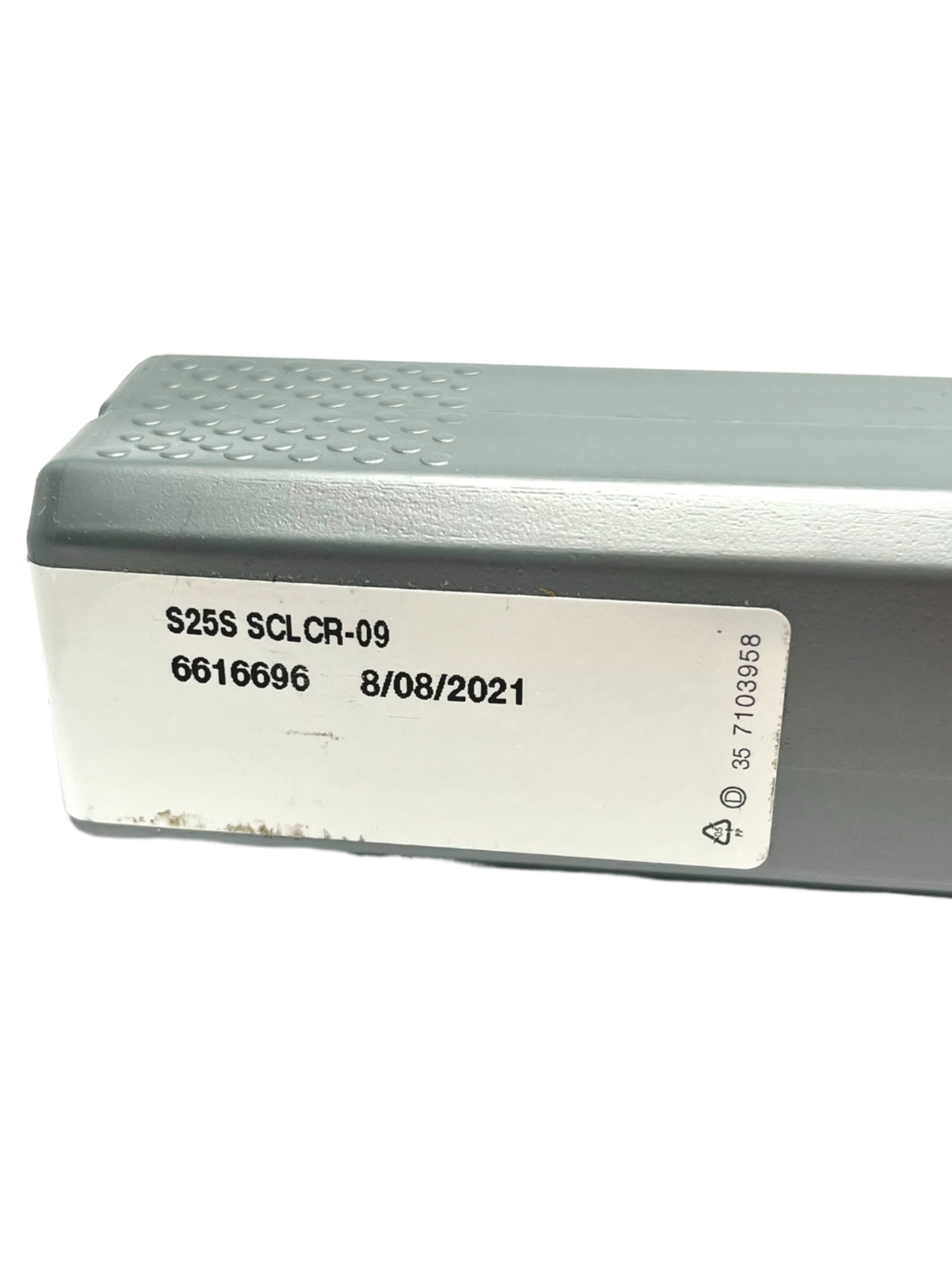

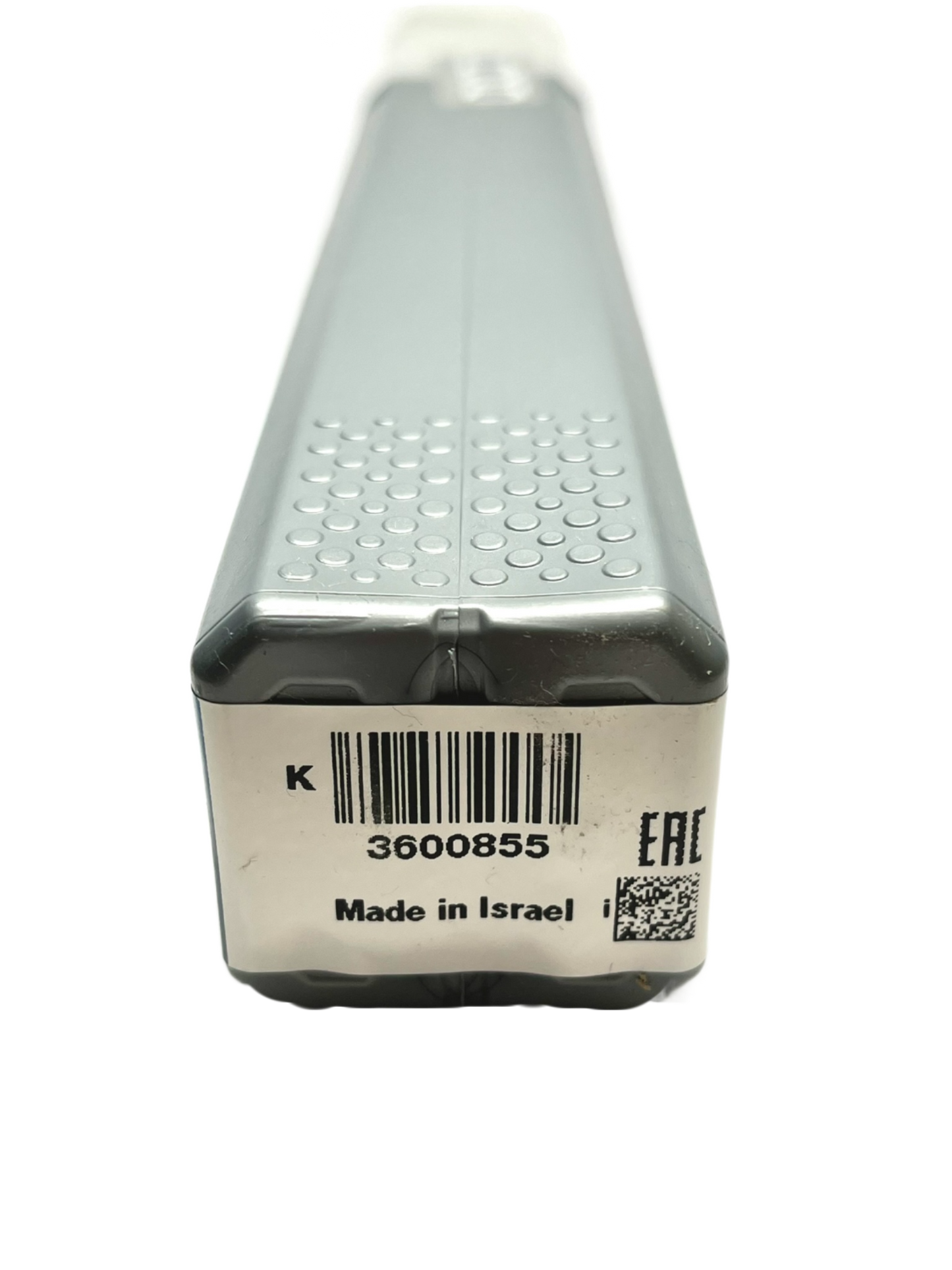

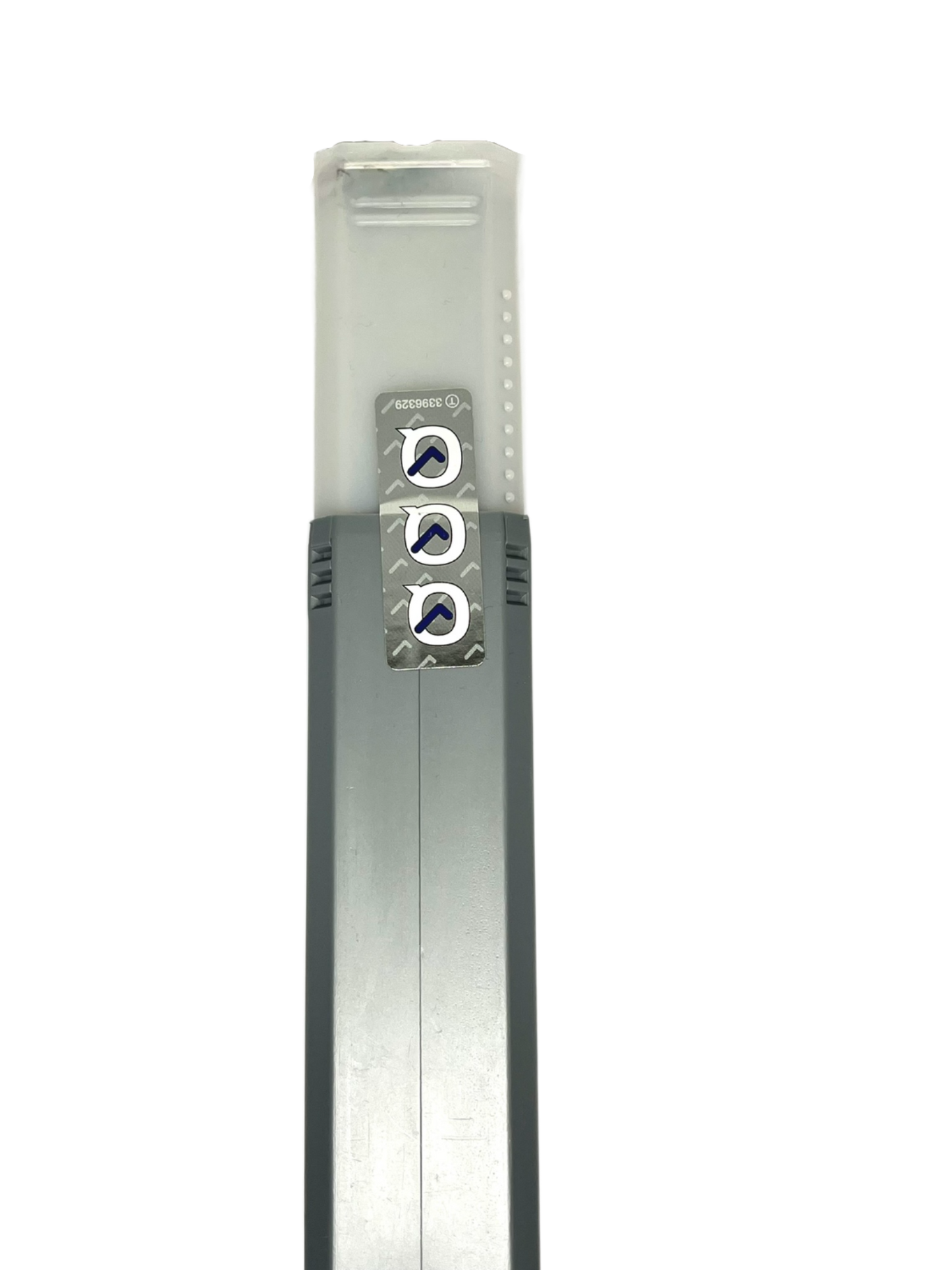

*Box appearance may vary depending on newer or older stock batches.*
