Iscar DGL 3102C-6D IC328 6002451

Iscar DGL 3102C-6D IC328 – Precision Parting Insert with C Chip Breaker for Stable and Efficient Machining

Enhance your machining performance with the Iscar DGL 3102C-6D IC328 insert. Designed for accuracy, stability, and smooth operation, it features a C-type chip breaker for excellent chip evacuation and surface finish, a 3.10 mm cutting width, a 0.2 mm corner radius, and a 6° cutting edge angle that ensures precise, consistent parting performance. The IC328 CVD-coated grade delivers outstanding wear resistance, toughness, and heat stability, making it ideal for parting and grooving on steel, stainless steel, and cast iron. Achieve precise results, superior tool life, and exceptional surface quality with Iscar’s proven DGL series technology.

Key Features

• Insert type: DGL 3102C-6D
• Chip breaker: C – optimized for stable cutting and efficient chip evacuation
• Cutting edge angle: 6°
• Cutting width: 3.10 mm
• Corner radius: 0.2 mm
• Coating grade: IC328 – CVD-coated for high wear resistance, toughness, and consistent performance

Applications

• Precision parting and grooving operations
• Suitable for machining steels, stainless steels, and cast irons
• Provides smooth chip flow and stable cutting
• Ensures excellent surface finish and long tool life
• Performs effectively in both continuous and interrupted cuts
• Compatible with Iscar DGFH/DGTR/DGFS/DGAD/DGAQ grooving and parting toolholders

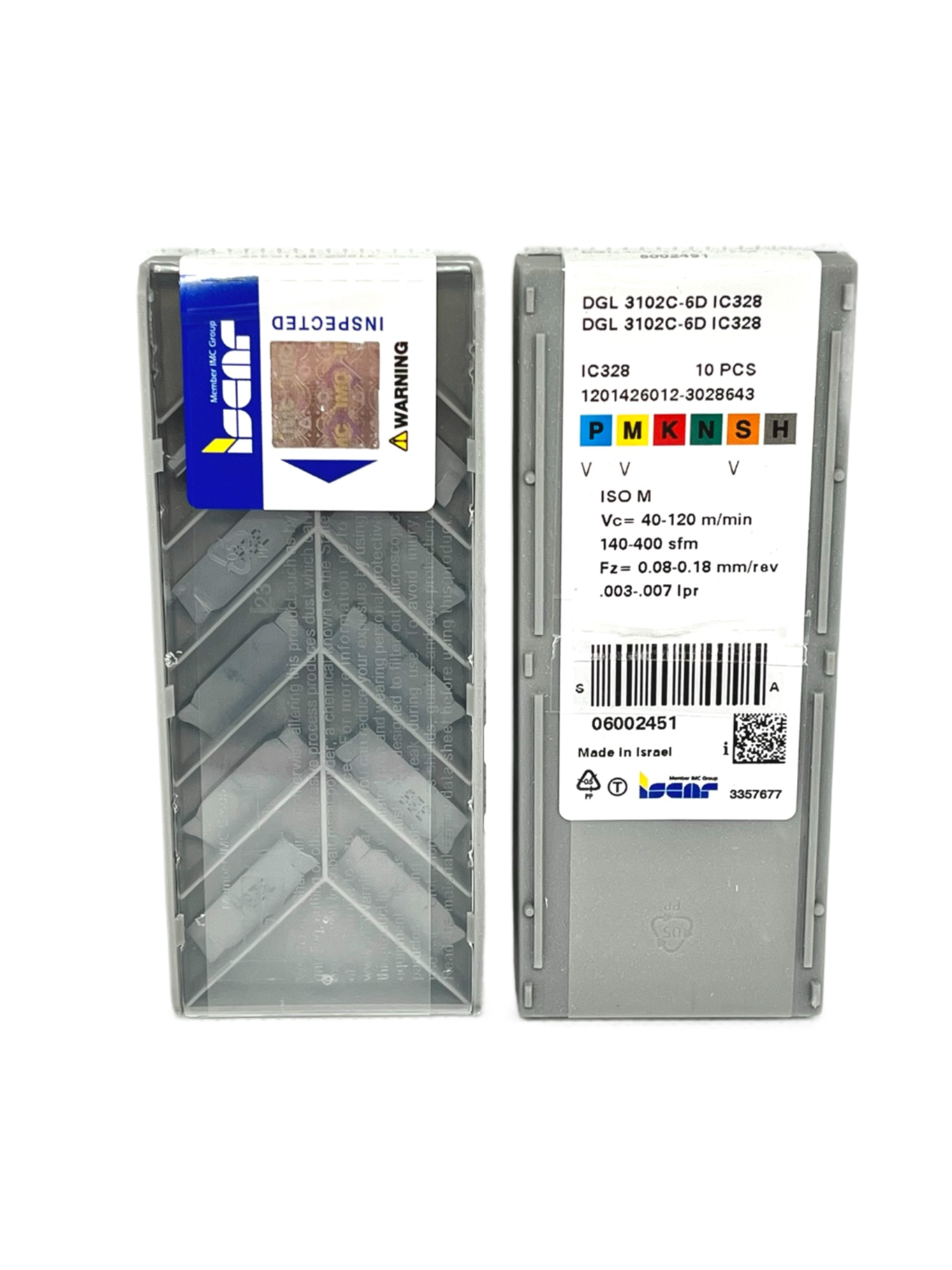

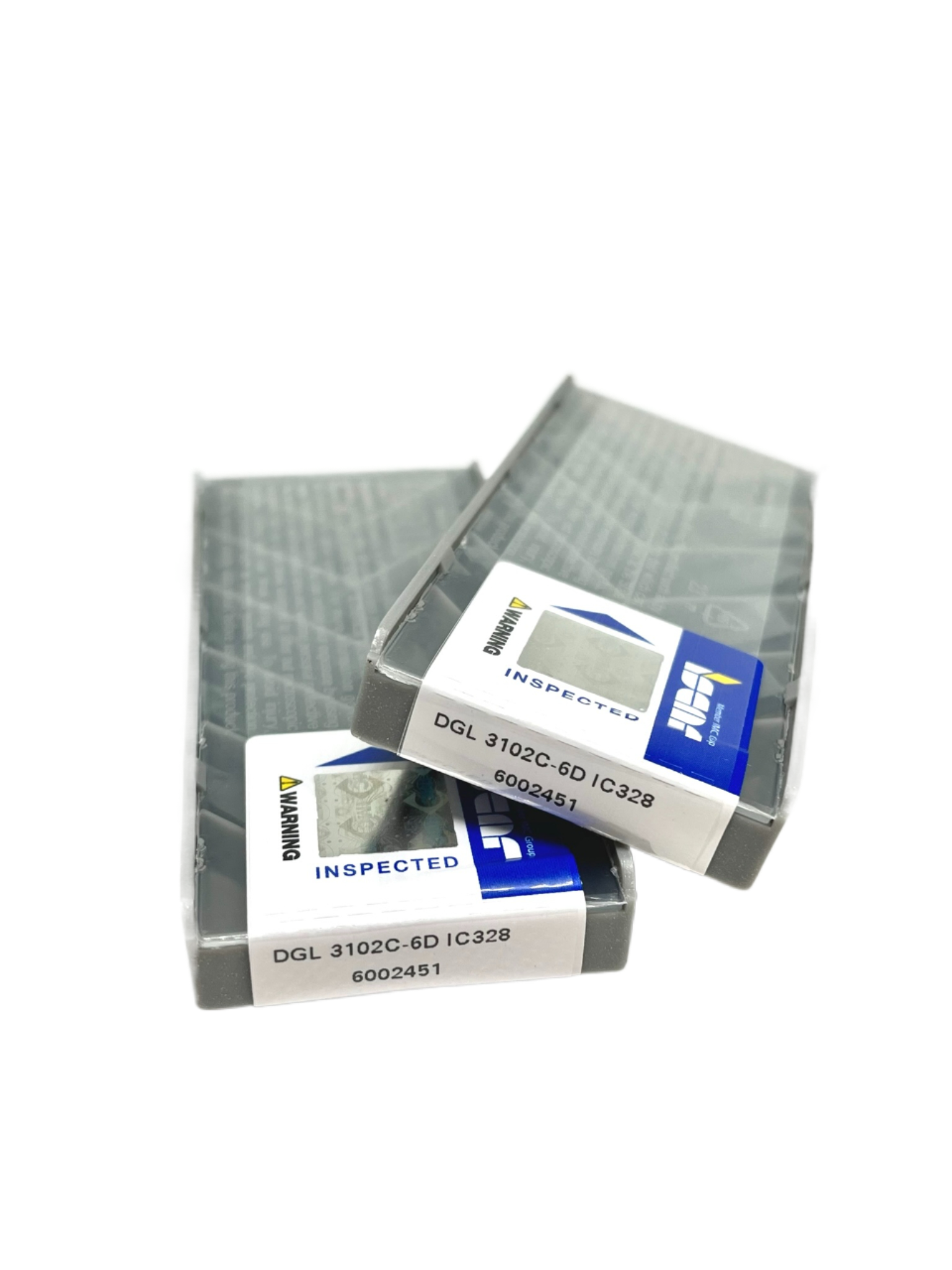

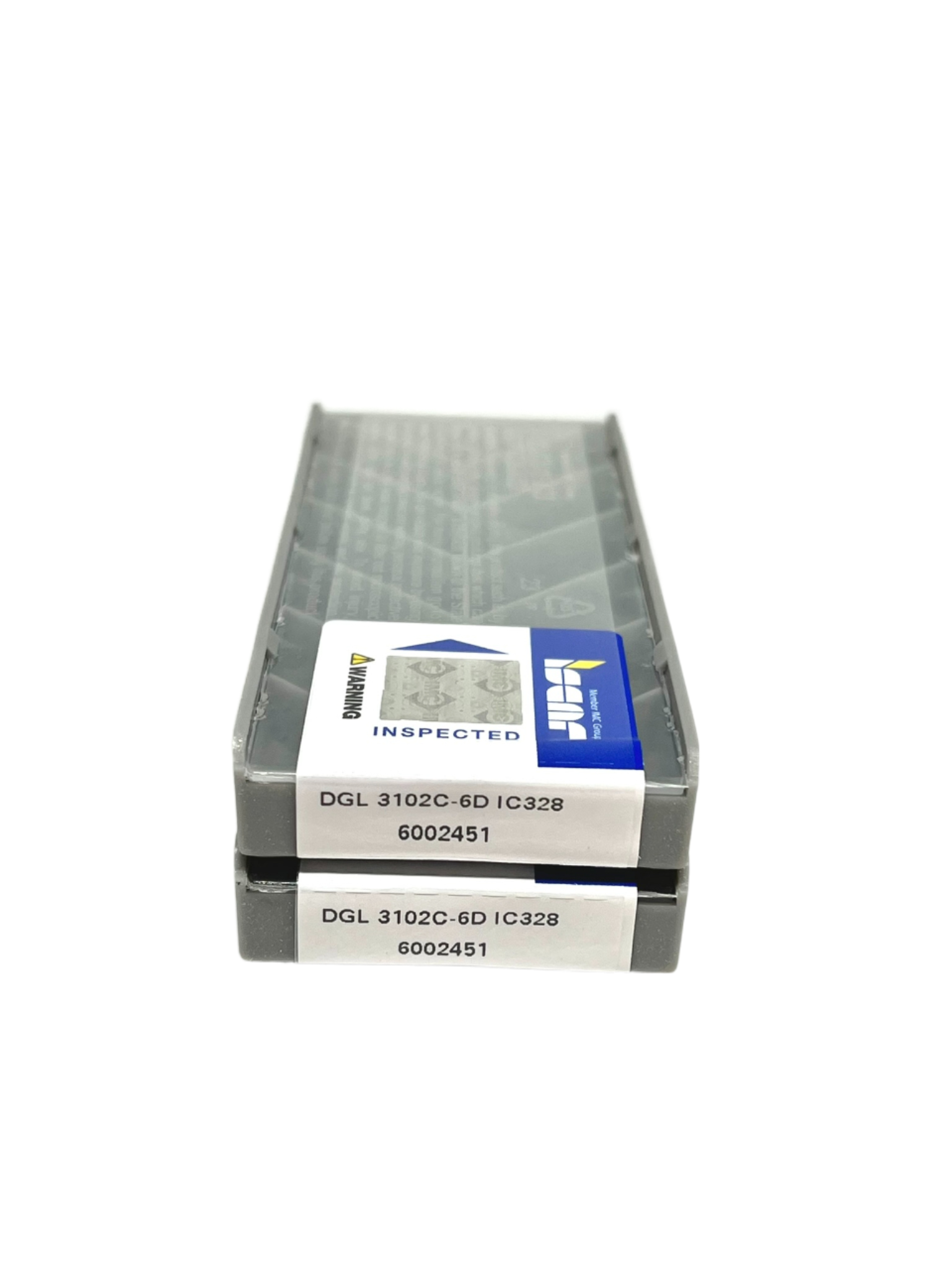

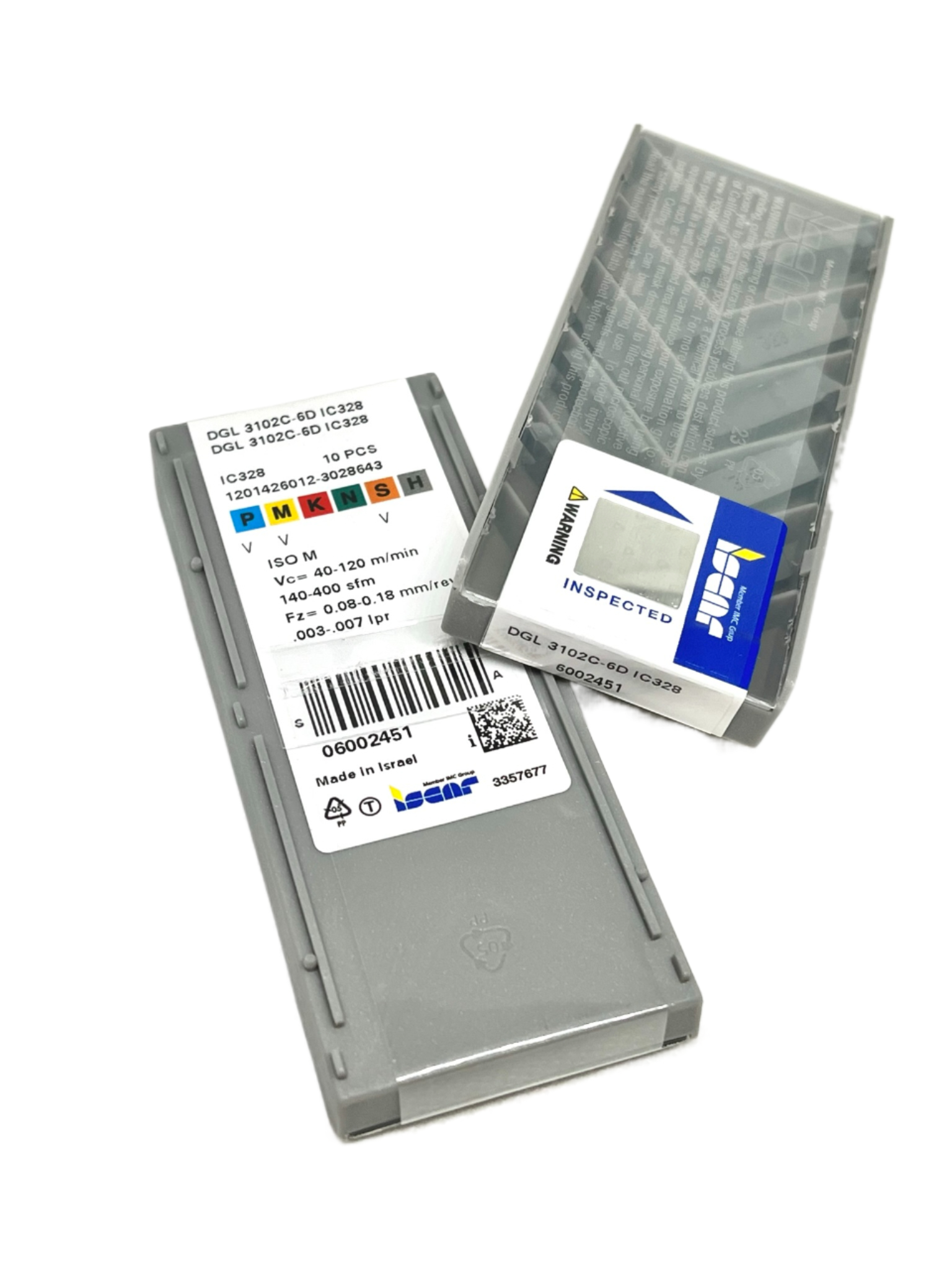

Note: Price refers to one box containing 10 inserts.

*Box appearance may vary depending on stock batch (older or newer packaging styles).*
