Iscar TAG N3C IC830 6011386

Iscar TAG N3C IC830 – Precision Grooving Insert with C Chip Breaker for Stable and Efficient Machining

Enhance your machining performance with the Iscar TAG N3C IC830 insert. Designed for stability and precision, it features a C-type chip breaker for smooth, controlled chip evacuation, a 3.05 mm cutting width, and a 0.2 mm corner radius for accurate, consistent cutting. The IC830 PVD-coated grade combines excellent wear resistance, edge toughness, and heat stability, making it ideal for parting and grooving operations on steel, stainless steel, and cast iron. Achieve consistent accuracy, smooth surface finishes, and long tool life with Iscar’s reliable TAG series insert design.

Key Features

• Insert type: TAG N3C
• Chip breaker: C – optimized for stable cutting and effective chip evacuation
• Cutting width: 3.05 mm
• Corner radius: 0.2 mm
• Coating grade: IC830 – PVD-coated for toughness, wear resistance, and thermal stability

Applications

• Precision parting and grooving operations
• Suitable for machining steels, stainless steels, and cast irons
• Provides smooth chip flow and excellent surface finish
• Ensures high accuracy and reliable tool life
• Performs effectively in both continuous and interrupted cuts
• Compatible with Iscar TGFH/TGTR/TGAD/TGSU/TGAQ/TGSF/TAGPAD grooving tools

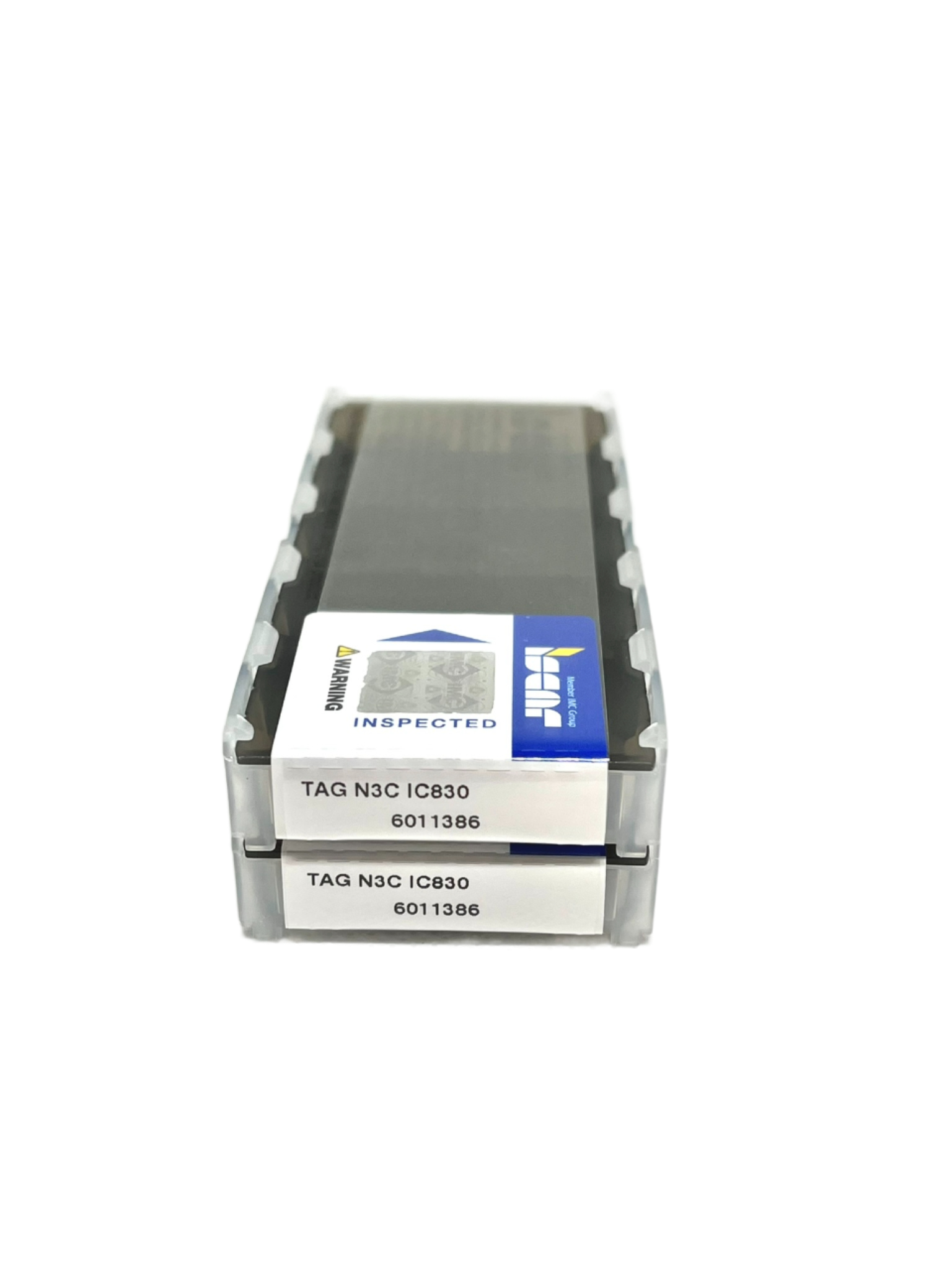

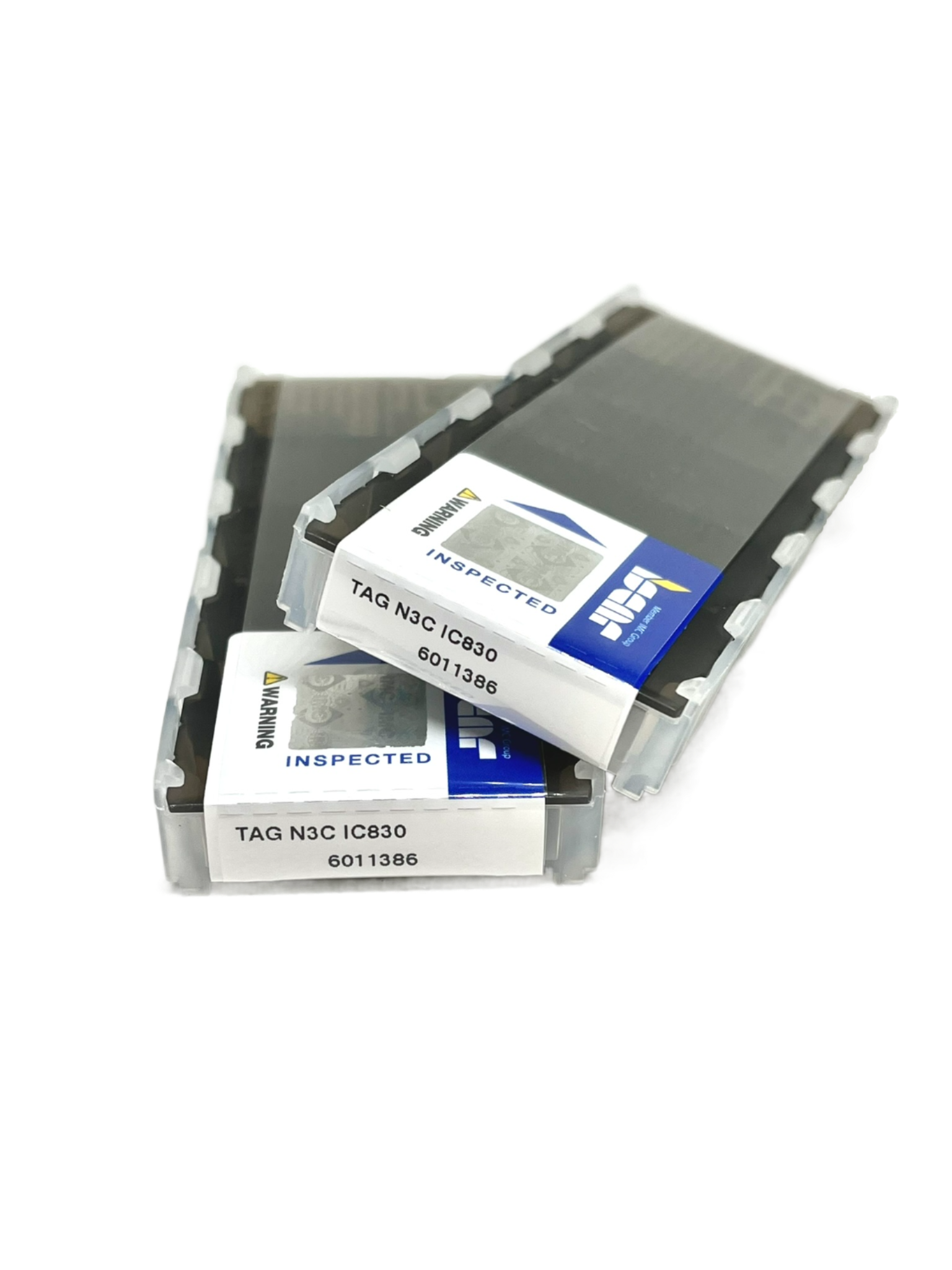

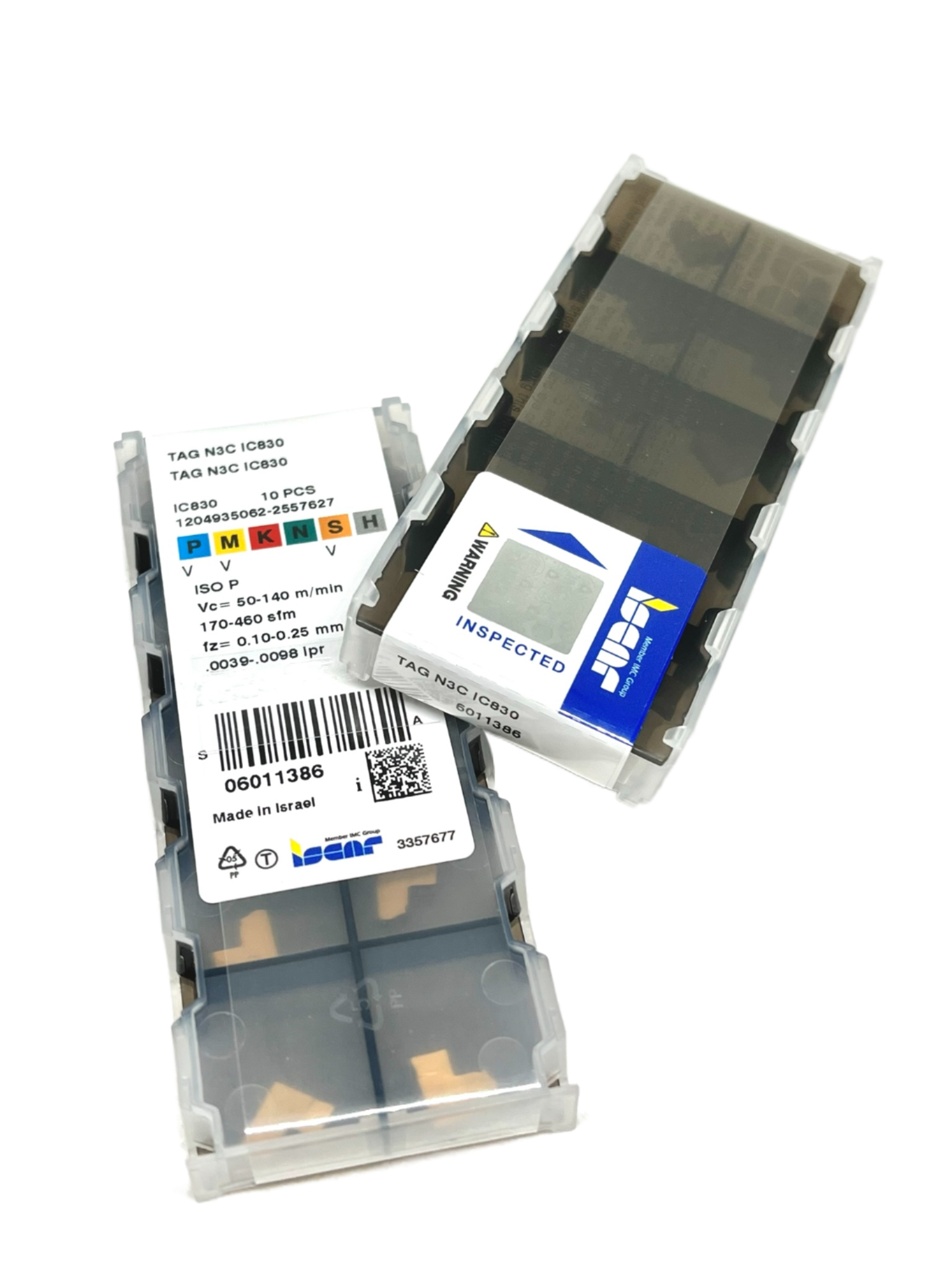

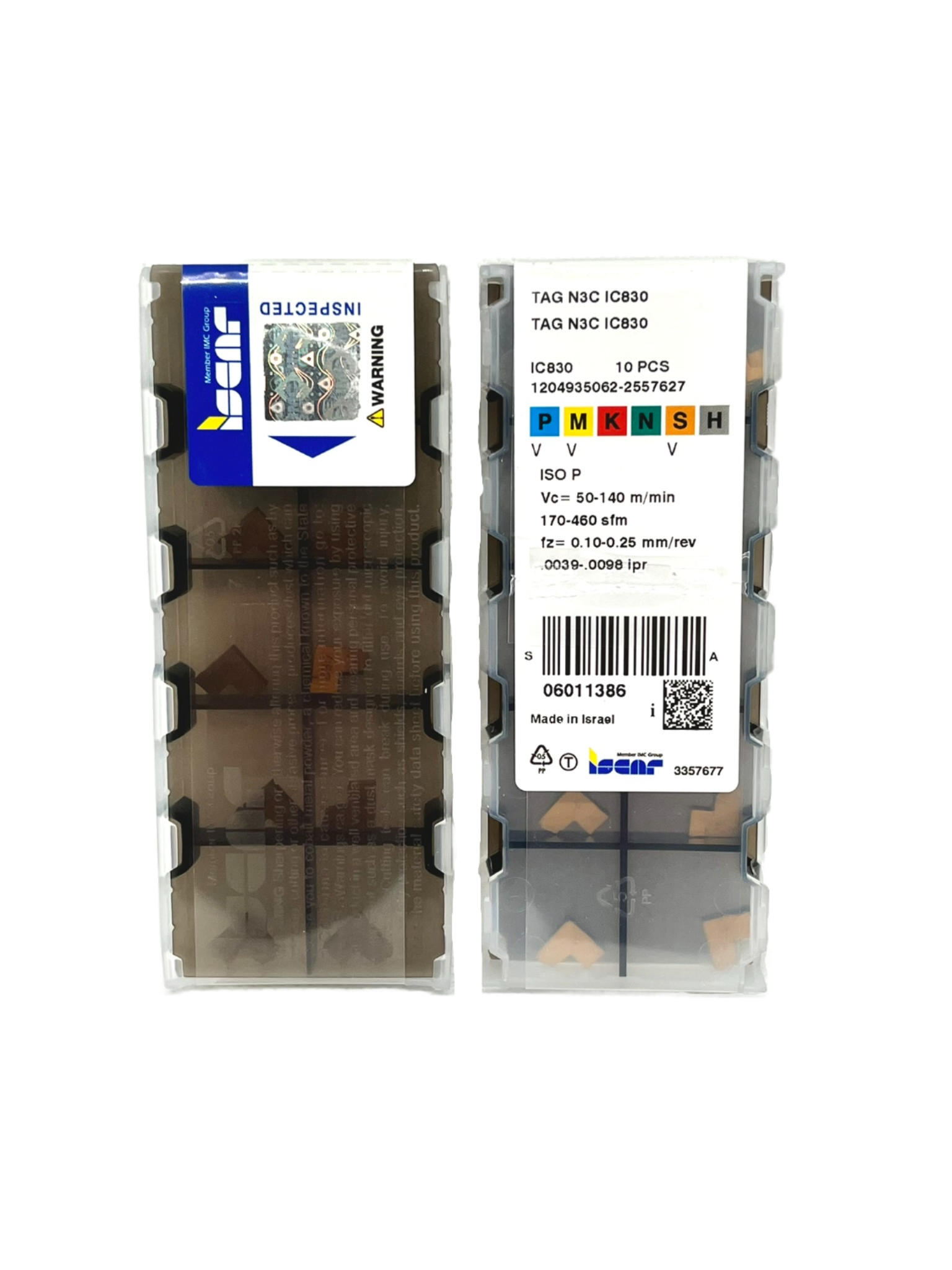

Note: Price refers to one box containing 10 inserts.

*Box appearance may vary depending on stock batch (older or newer packaging styles).*
